8 Port Interface Board With C+ C++ SFP For OLT ZTE GTGO Service Board

Product Categories
Shenzhen UT-King Technology Co., Ltd.
Contact Now

8 Port Interface Board With C+ C++ SFP For OLT ZTE GTGO Service Board

Brand Name : ZTE

Model Number : GTGO

Place of Origin : Guangdong, China

MOQ : 1 pcs

Price : USD 450-520per pieces

Payment Terms : T/T, Western Union

Supply Ability : 1000pcs one week

Delivery Time : 5-12 work days

Packaging Details : 10/20 pcs 1 carton

Product name : ZTE Service Board

GPON Port : 8-GPON Port

Port Rate : Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s

Optical Fiber Type : SC UPC

Encapsulation Type : SFP

Operating Wavelength : Tx: 1490 nm, Rx: 1310 nm

Dimension : 22.86 mm x 237.00 mm x 395.40 mm

Contact Now

8 Port interface board with C+ C++ SFP for OLT ZTE GTGO service Board

Product Features
ZTE GTGO Service Board targets a large-capacity xPON aggregation access platform for next-generation networks and provides access aggregation and management control for HSI, VoIP, TDM, IPTV, CATV, mobile 2G/3G, WiFi and other full-service services for next-generation networks. Carrier-class QoS and security reliability. It meets the requirements of “large capacity, high density, meeting the network evolution and deployment requirements of “large capacity, less office”, enhanced access capability, and meets the requirements of network flattening. High-density interface board provides special solutions for large split ratio and long-distance application scenarios.

Features

* ZTE GTGO Service Board flexible, with powerful 1588/1PPS+TOD
High-precision time/clock transmission capability adapts to TDM and mobile Backhaul bearers, complete VLAN/multicast/QoS service capability and excellent service performance, providing fine PON DBA dynamic bandwidth with The distribution mechanism and QoS mechanism are in line with the network construction requirements under the background of optical access and retreat.

* ZTE GTGO Service Board carrier-class system and business security and reliability
Supports Ethernet OAM and end-to-end management and operation, redundancy protection and hot-swap of key components, provides multiple network protection modes, supports optical link detection, and has strong security protection.

* ZTE GTGO energy saving and emission reduction, green products help operators build green communications meet the industry’s energy-saving emission reduction need to support a variety of power-saving models, products lead-free, friendly to the environment, in the entire process of product development, production and transportation green.
Product Paramenters
Brand
ZTE
Model
GTGO
GPON Port
8-GPON Port
Type
C+ Module: Single Fiber Bidirectional Optical Module, Class C+
MAX Split ratio (Class B+)
1:64
MAX Split ratio (Class C+/Class C++)
1:128
Operating Wavelength
Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type
SFP
Port Rate
Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
Minimum Output Optical Power
C+ Module : 3.00 dBm
Maximum Output Optical Power
C+ Module : 7.00 dBm
Maximum Receiver Sensitivity
C+ Module : -32.00 dBm
Optical Connector Type
SC/PC
Optical Fiber Type
Single-mode
Reach
20.00 km
Overload Optical Power
C+ Module : -12.0 dBm
Extinction Ratio
8.2 dB
Weight
1kg
Dimensions (W x D x H)
22.86 mm x 237.00 mm x 395.40 mm

Details Images

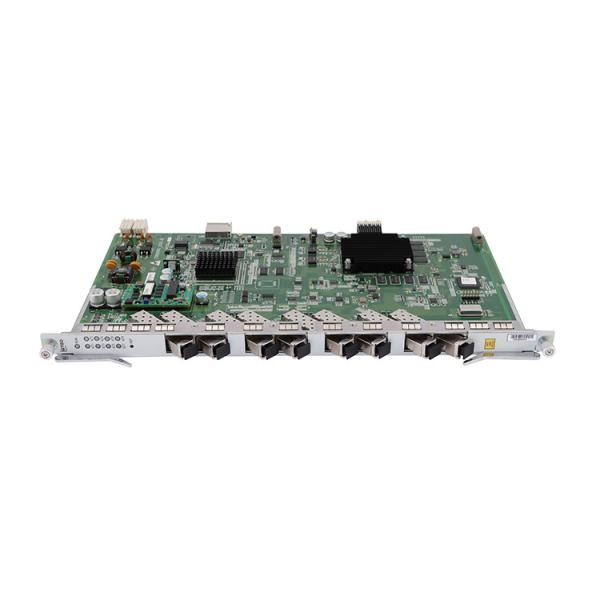

8 Port Interface Board With C+ C++ SFP For OLT ZTE GTGO Service Board8 Port Interface Board With C+ C++ SFP For OLT ZTE GTGO Service Board8 Port Interface Board With C+ C++ SFP For OLT ZTE GTGO Service Board8 Port Interface Board With C+ C++ SFP For OLT ZTE GTGO Service Board8 Port Interface Board With C+ C++ SFP For OLT ZTE GTGO Service Board
